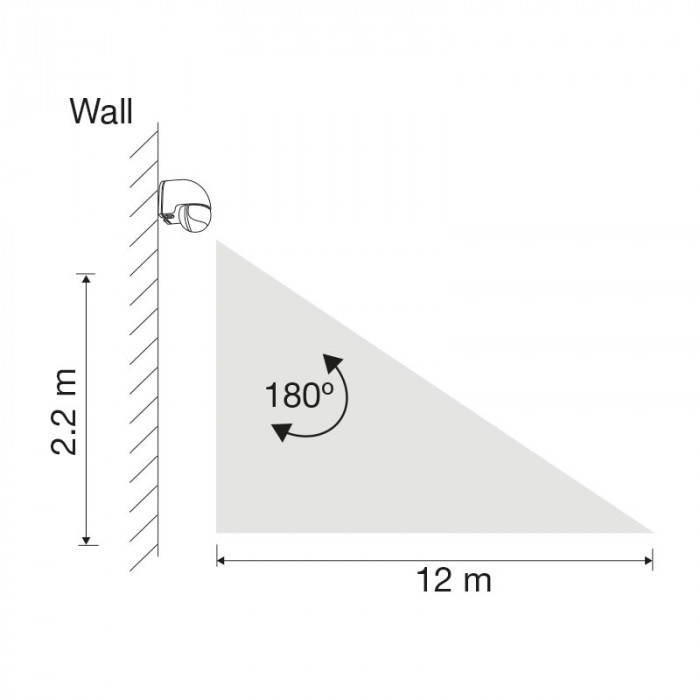

ND180 Line Diagram2

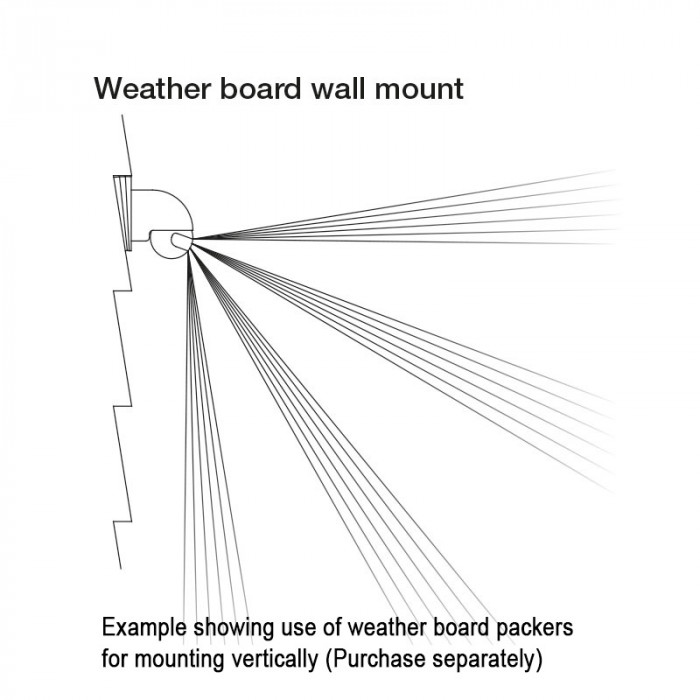

Sensor Mount Weatherboard
  • ND100 or 180 WH main S
  • ND180 Line Diagram2
  • Sensor Mount Weatherboard

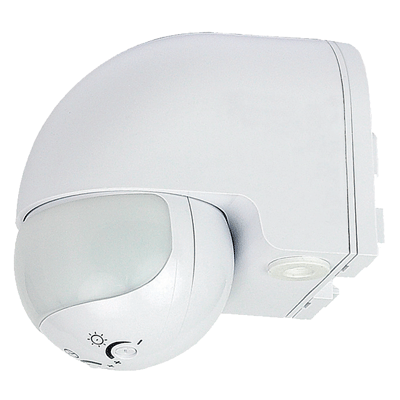

Exterior 12 metre 180º sensor

ND180-WH
$52.21

In Stock

ASSOCIATED PRODUCTS
SDoC DOWNLOAD INSTRUCTION SHEETS
FEATURES

  • 12 metre 180º exterior wall PIR motion detector
  • Recommended mounting height 2.2m
  • Adjustable sensor from left to right 120º, up and down 30º
  • Adjustable time and lux settings
  • Relay switched suitable for energy saver lamp technology
  • Max 1000 watt Incandescent
  • Max 400 watt Fluorescent
  • Max 300 watt LED

SPECIFICATIONS

IP Rating: IP44

Indoor / Outdoor: Indoor, Outdoor

Mounting type: Wall

Showroom Locations: 68I

DIMENSIONS

95mmH x 95mm Depth x 64mmW

TECHNICAL DATA

Power supply: 220-240V, Double Insulated
