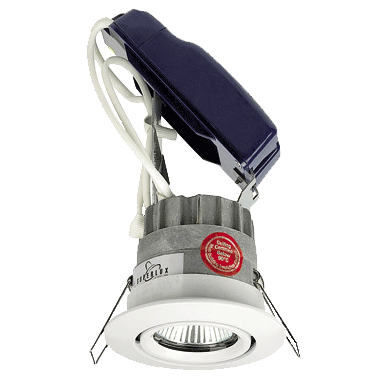

Integral Design Fixed MR16 Downlight in White

SVE75-WH
$33.35

In Stock

ASSOCIATED PRODUCTS
FEATURES

  • Thermal cut-off protection with auto reset function. Guards against installation faults or overlamping.
  • Quick and economical installation - only one connection large looping mains terminal.
  • Acoustic rating: for acoustic STC 55 ceilings space 1.6m minimum.
  • For acoustic (RW) STC 57 and 58, space 2.5m minimum.
  • Superlux recommends the use of trailing edge dimmers.
  • HIH (High Intensity Halogen) lamp included, 30% power saving.  35W = 50W of illuminance.
  • 5 year transformer warranty.
  • ECG must not be installed on a circuit with inductive loads.

SPECIFICATIONS

Lamp included: Yes

Lamp holder type: MR16

Number of lamps: 1

Air / Moisture Transfer: Closed

Technology field: Halogen, LED Replaceable

Indoor / Outdoor: Indoor

Mounting type: Recessed

Colour: White

Downlight Classification: CA135

DIMENSIONS
  • Trim 94mmØ.

Hole cut: 75

Cavity depth: 190

Side clearance: 50

TECHNICAL DATA

Total lumens: 525

Colour temp: 3,000K

Power supply: 220-240V

Dimmable: Yes

CRI: 100

Wattage: 35

Beam angle: 38°
