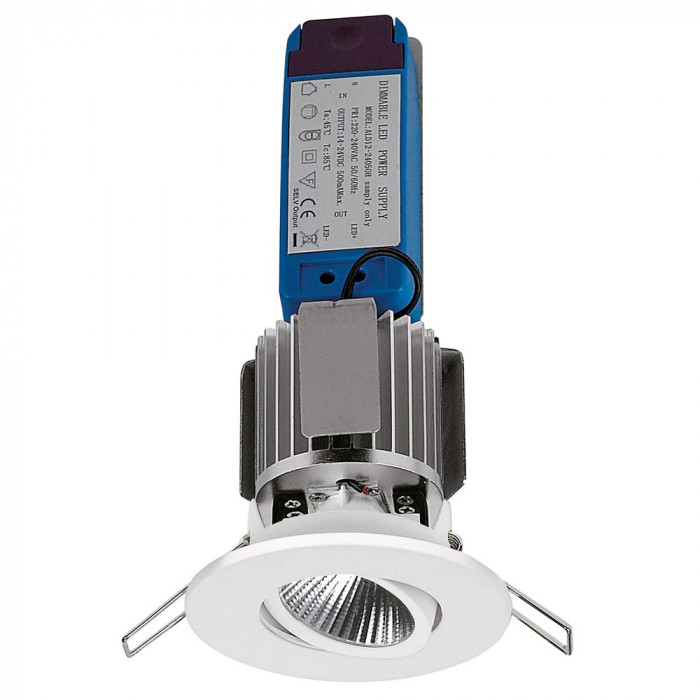

Tiltable Intergrated LED Reflector Downlight
LDL75WW-WH
$67.39
Low Stock
COLOURS
DOWNLOAD PHOTOMETRICS SDoC DOWNLOAD INSTRUCTION SHEETS
FEATURES
- Bridgelux brand LED technology
- 10Watt integrated LED reflector downlight
- Traditional rearward aluminium heat-sinking
- More light than a 50Watt halogen downlight
- Beam angle 40º with reflected light out to an 80º angle
- Supplied with integrated LED driver
- Aluminium die cast face
- Tiltable to 15º degrees
- Glass protection lens over LED and reflector
SPECIFICATIONS
Material: Aluminium
Lamp included: Yes
Number of lamps: 1
Air / Moisture Transfer: Closed
Technology field: LED
Indoor / Outdoor: Indoor
Mounting type: Ceiling, Recessed
Colour: White
Downlight Classification: CA135
Showroom Locations: 90DD
DIMENSIONS
Flange 103mmØ
Hole cut: 75
Cavity depth: 200
Side clearance: 25
TECHNICAL DATA
Total lumens: 775
Colour temp: 3,000K
Power supply: 220-240V, Double Insulated
Dimmable: Yes
CRI: 83
Wattage: 10

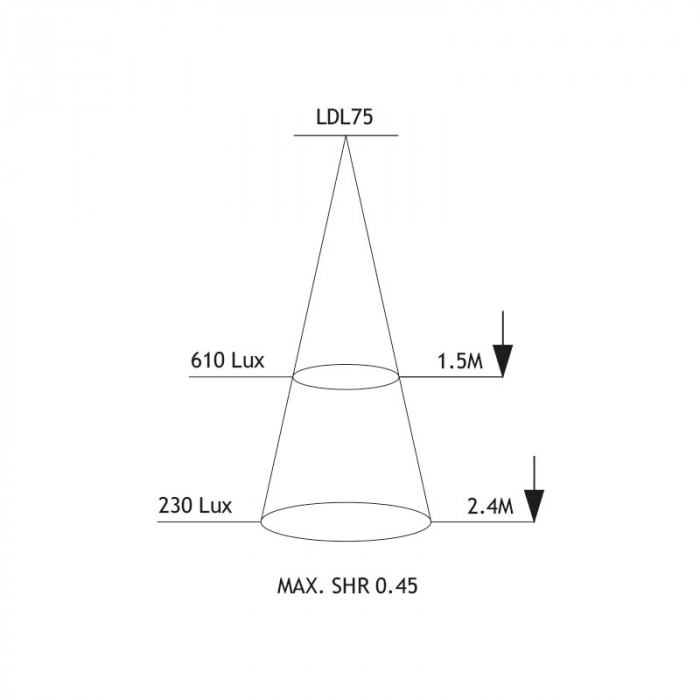

Beam angle: 40°
Control gear: Included
