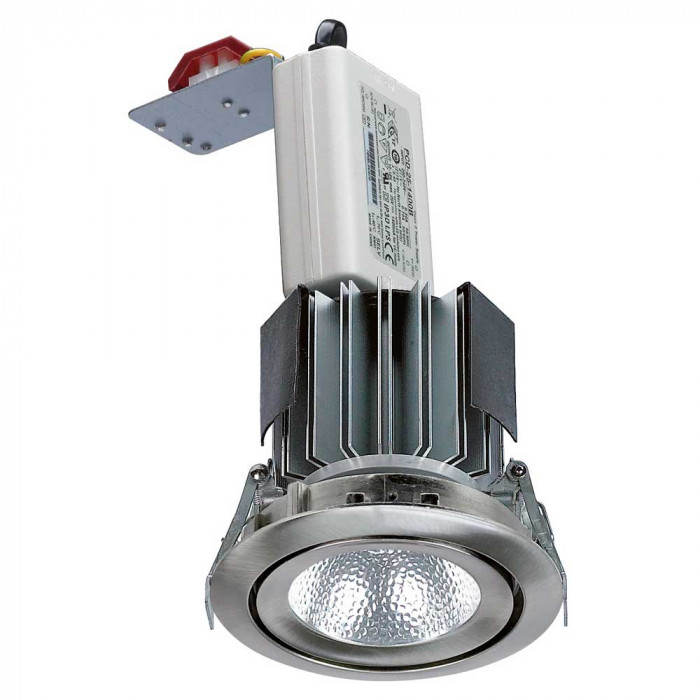

Intergrated LED Reflector Downlight
LDL105CW-SC
$74.06
In Stock
COLOURS
FEATURES
- New version now dimmable- meanwell driver
- 18Watt integrated LED reflector downlight
- Comparable light output to a 2x 18Watt CFL downlight
- Reflector designed to give uniform light spread
- Aluminium die cast face
- Aluminium heat sink for effective thermal management
- Bridgelux Brand LED technology with Meanwell driver
- Sealed glass front
- Below ceiling IP55 rating
SPECIFICATIONS
Material: Aluminium
Lamp included: Yes
Number of lamps: 1
Air / Moisture Transfer: Closed
IP Rating: IP55
Technology field: LED
Indoor / Outdoor: Indoor
Mounting type: Ceiling, Recessed
Colour: Satin Chrome
Downlight Classification: CA135
Showroom Locations: 90X
DIMENSIONS
Flange 120mmØ
Hole cut: 105
Cavity depth: 220
Side clearance: 25
TECHNICAL DATA
Total lumens: 900
Colour temp: 3,800K
Power supply: 220-240V, Double Insulated
Dimmable: Yes
CRI: 81
Wattage: 18

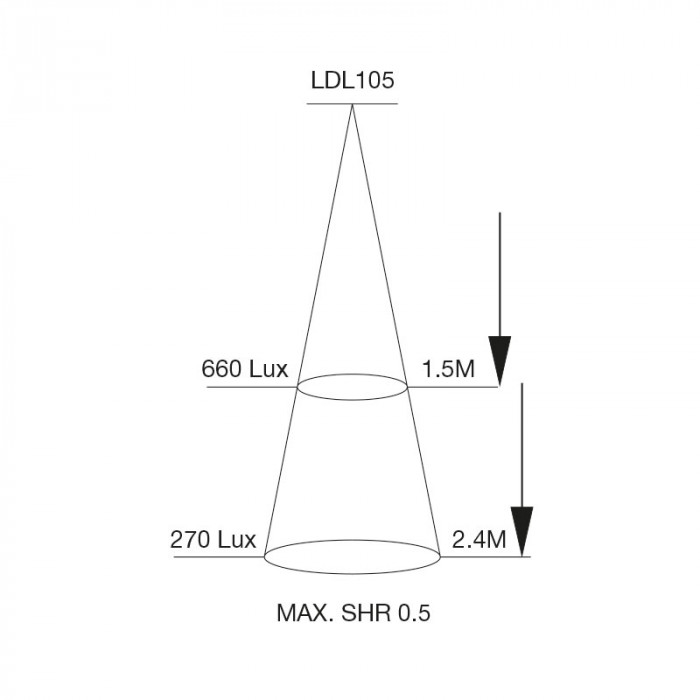

Beam angle: 30°
Control gear: Included
